Nouveau DVR HIKVISION 720 P Agrandir l'image

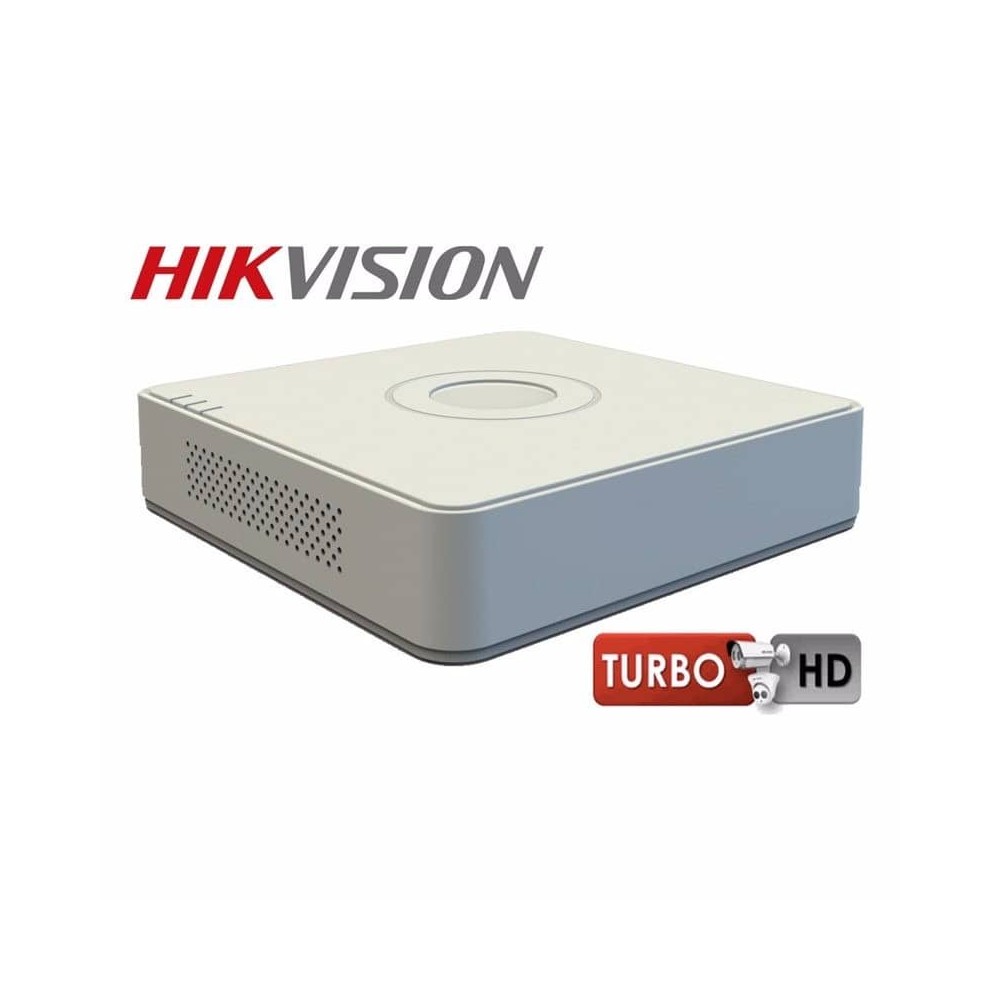

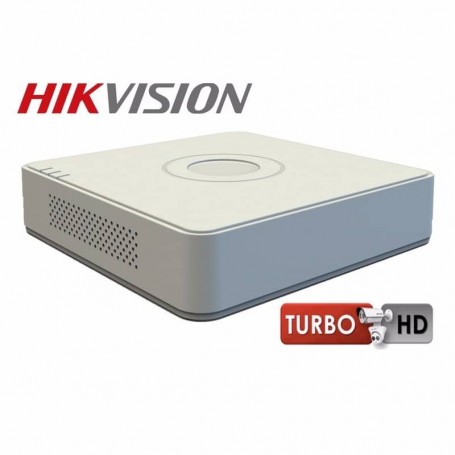

DVR HIKVISION 720 P 4 CHANNEL

DS7104HGHI-F1

Nouveau

Support H.264+/H.264 video compression

Support HDTVI/AHD/CVI/CVBS/IP video input

Up to 4-ch 960p IP camera input for DS-7104HGHI-F1, up to 8/16-ch 1080p IP camera input for DS-7108/7116HGHI-F1

Max. 1200 m for 720p HDTVI signal

Plus de détails

220,000DT TTC

En savoir plus

Video/Audio Input
Audio Input: 1-ch
Video Compression: H.264,H.264+
Analog Video Input: 4-ch
Analog and HD-TVI video input: 4-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Video Input: 1-ch (up to 5-ch)
IP Video Input Resolution: Up to 2 MP resolution
Audio Compression: G.711u
Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution: When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps ~ 4 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Synchronous Playback: 4-ch
Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
General
Power Supply: 12 VDC
Consumption: ≤ 8 W
Working Temperature: -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity: 10% to 90%
Dimensions: 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight: ≤ 0.8 kg (1.8 lb)
